48MP USB Camera Module 8000*6000 Fast Autofocus Industrial UVC Webcam For WindowsAndroidLinuxMac

Description

48MP USB Camera Module 8000*6000 Fast Autofocus Industrial UVC Webcam For WindowsAndroidLinuxMac





Ailipu Technology Co.,Ltd, who have 19 years history, is a professional manufacturer of surveillance system .

Ailipu has its own brand ELP, which already well know in security surveillance system. With its own unique R&D team as the basic, oriented by dedicated sales team,

ELP already developed into a prefessional video products company integrate with developing, production, sales and also service all together.

ELP is developing its own special USB Cameras for industrial vision. Recently, we present new USB cameras module range from 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel, 5megapixel autofocus,  8megapixel to 13megapixel which already used in all kinds of industrial system.

ELP can also OEM or customize products specially by customers’ requirements. We always believe”Together everybody achives more!”, and we are looking forward your choice and join, we fought together,open up a new future of video surveillance industry.





The USB48MP01 is a new member of ELP’s USB camera family. It’s a 48MP, USB 2.0 camera. This USB camera is based on the 1/2 GM1 image sensor and has the ability to stream images and videos seamlessly. Fast Autofocus About 200ms,All Auto functions can be performed (Auto White Balance, Auto Exposure control). Standard UVC protocol, compatible with Windows 7/8/10/11, Mac OS, Andriod, and Linux.



1) More than HD: This camera adopts an 48MP 1/2 GM1 sensor for sharp image and accurate color reproduction, Max. still resolution 8000*6000 .



2) 1/2 CMOS GM1 Image sensor Webcams: High quality and low color reproduction deviation produce sharp images and more details. Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial



3) Lens: M8.15 Mount lens, DFOV About 82 degree, HFOV About 70 degree



4) Autofocus: Focus Speed is Fast About 200ms,Shoot objects in millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera.



5) Plug & Play: UVC-compliant, just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.



6) Applications: This tiny camera is highly recommended for the video surveillance system, live streaming, videoconference, dashcam, and other vision





Model	ELP-USB48MP01-AF70 ELP-USB48MP01-KAF70 (with case)
Sensor	GM1
Max. Resolution	8000(H)*6000(V)
Lens Size	1/2 inch(4:3)
Compression Format	MJPEG / YUV2(YUYV)
Resolution & FrameRate	8000×6000@ 5fps MJPEG / 4000×3000@ 15fps MJPEG 3840×2160@ 30fps MJPEG / 1920×1080 @ 30fps MJPEG 1280×720 @ 30fps MJPEG
Surface Mount Technology	SMT
Focus Speed	Fast About 200ms
Central Definition	1000LW/PH (Center)
S/N Ratio	36dB
Dynamic Range	82dB
Sensitivity	1.4V/lux-sec@550nm
Min illumination	0.3lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port Type	USB2.0 High Speed
AEC	Support
AWB	Support
AdjustableParameters	Brightness,Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Exposure
Lens Parameter	Size1/2 DFOVAbout 82degree HFOVAbout 70degree MountM8.15*P0.35
Power Supply	USB BUS POWER 4P-2.0mmSocket
Operating Voltage	DC5V
Working Current	550Ma- 610mA
Board Size	Double-deck,38mm ×38mm
Storage Temperature	-20°C to 80°C
Working Temperature	0°C to 70°C
USB Cable	Standard 1m/ optional 2m,3m…
Operating System Request	WinXP/Vista/Win7/Win8/ Win10/ Win11 etc. Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC





Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.

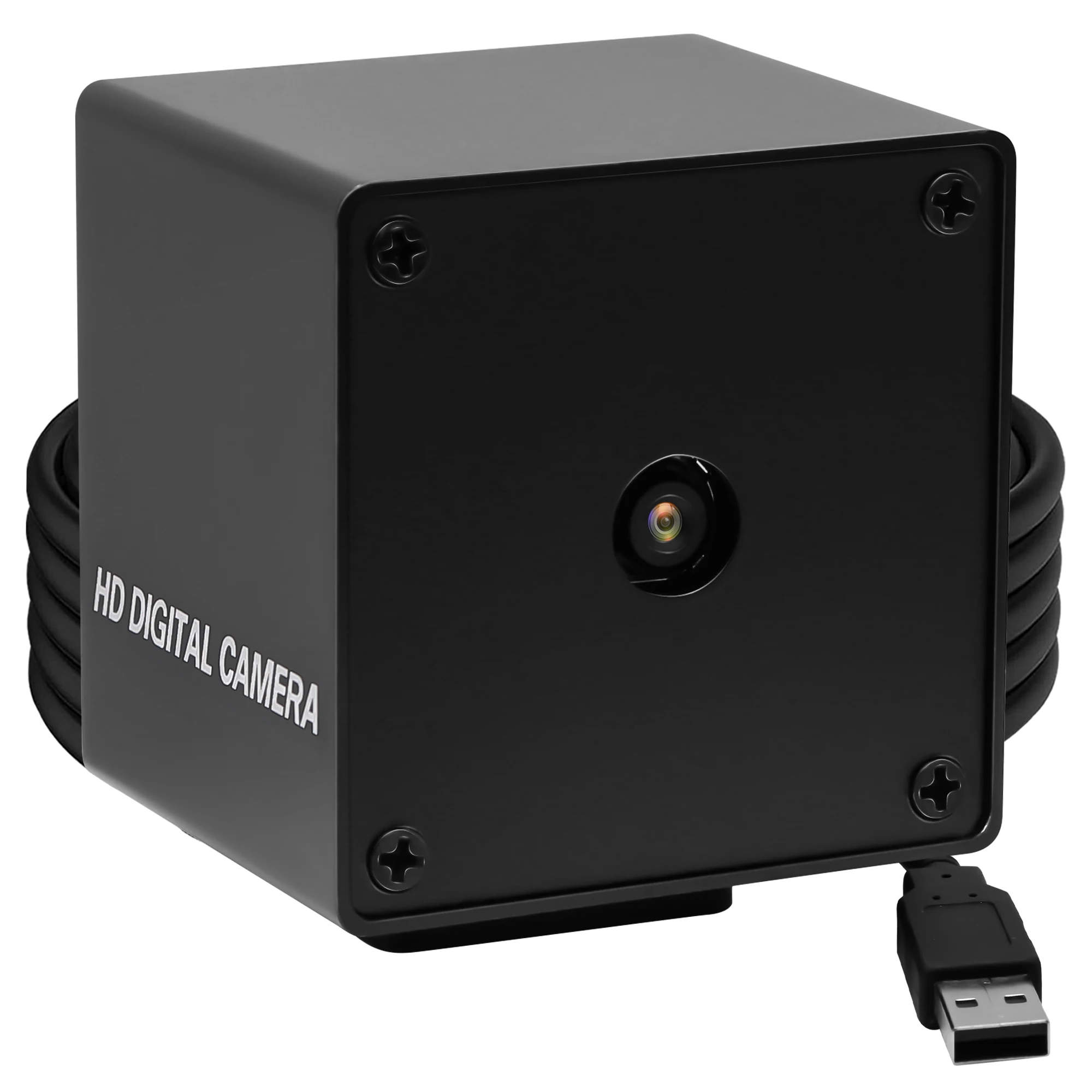

48MP Autofocus usb camera with case-ELP-USB48MP01-KAF70



48MP Ultra Clear

Max Resolution:

8000(H) X 6000(V) 48 Megapixel

super Image reality, real color reproduction, show your best in every video call.



No Distortion Lens:

Mini USB autofocus camera with none-distortion lens,wider range of view:

HFOV: 70degree

DFOV: 82degree

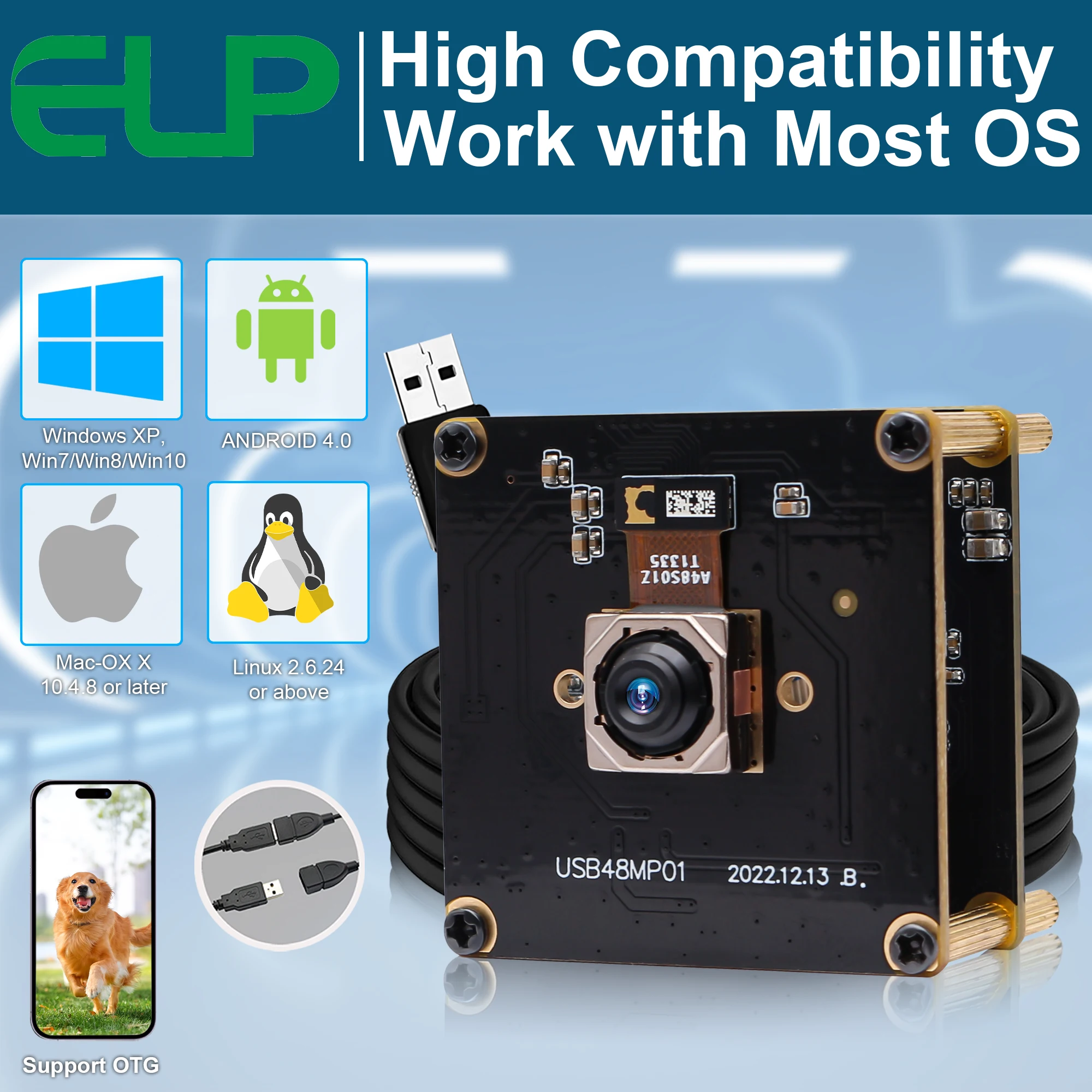

Best Universal Compatibility

Camera with UVC , compatible with Win XP/Vista/Win7/Win8 / Win10/ Win11etc. Linux with UVC (above linux-2.6.26). MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC/Raspberry Pi/PC



FOR RASPBERRY PI

It can work with already preinstalled camera software instead of builtin camera.

Support Android development board,Raspberry Pi development board,Jetson Nano,etc.

FOR PC:

Support windows,linux,mac,Android,raspberry Pi

Very easy to use,UVC compliant,free driver,just plug in and go.



MIni Size/Light Weight

Mini size 41*41mm,light weight.

Equipped with 2meters USB cable for wider range of usage.



Application

this mini-sized usb camera is Well used for medical device, 3D scanner, high resolution document scan, scientific research&developmrnt, education and training, etc.



Without case-ELP-USB48MP01-AF70
