ELP 4MP Dual Lens Synchronization USB Camera High Speed 1080P 60fps Lightburn Camera For Windows Android Mac Linux Raspberry Pi
ELP 4MP Dual Lens Synchronization USB Camera High Speed 1080P 60fps Lightburn Camera For Windows Android Mac Linux Raspberry Pi
- Delivered today (order Mon-Fri before 12:00, delivery between 17:00 and 22:00)
- Including shipping costs, sent by Electrozone.id
- Pick up at a Electrozone.id collection point is possible
- 30 days to change your mind and free returns
- Day and night customer service
Description
- Scene: Indoor
- Megapixels: 2MP
- TF Card: None
- Power Supply: Normal
- Storage: None
- Installation: Embedded
- Color: black
- is_customized: Yes
- Audio Output: None
- Minimum Illumination(Lux): 0.5lux
- Video Compression Format: MJPEG
- IR Distance(m): 0
- Dimensions (L x W x D)(mm): 86*23mm
- Power Supply(V): DC 5V
- Supported Mobile Systems: Android
- Sensor Brand: Aptina
- Special Features: Vandal-proof
- Sensor: CMOS
- Model Number: ELP-USB3D1080P02-H120
- Supported Operating Systems: Windows 10,Windows 2000,Windows 8,Windows 7,Windows 98,Mac OS,Windows XP
- Lens (mm): 3.6mm
- Connectivity: USB
- High Definition: 1080P(Full-HD)
- Style: Mini Camera
- Brand Name: ELP
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Sensor: 1/2.7 JX-F35
- Max. Resolution: 3840×1080
- Lens: no distortion lens, fisheye lens optional
- Compression format: MJPEG/YUV2(YUYV)
- Connecting Port type: USB2.0 High Speed
- UVC: support
- USB cable: 1m
- OS support: Windows /Linux with UVC/MAC
- Support OTG Protocol: USB2.0 OTG
ELP 4MP Dual Lens Synchronization USB Camera High Speed 1080P 60fps Lightburn Camera For Windows Android Mac Linux Raspberry Pi
Package includes:
1) 1PC 2mp dual lens usb camera module with lens
2) 1PC 1m usb cable
*Synchronization 2Megapixel HD 1080P JX-F35 Sensor Stereo USB2.0 Camera Module,works like the human eye, and shots the imaging you want.
*MJPEG：3840X1080@60fps/2560X720@60fps/1600X600@60fps1280X480@60fps/640X240@60fps
*With dual lens M12 120 degree no distortion lens, fisheye lens optional
*Small outline 86*16.5mm for embedded application
*UVC compliance for use in OS Windows, Linux, Android, MacMicro Mini Industrial USB 2.0 Camera Module Driverless for 3D VR Application
*OTG support
*Multi Software compatible: Amcap, USB Camera, iSpy, Webcam Viewer, OpenCV, VLC, V4L2, Photo Booth, Quick Time, CameraFi…
used for all kinds of machine as below
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
|
Model |
ELP-USB3D1080P02-H120 (H120 No distortion lens, HFOV 120 degree) ELP-USB3D1080P02-L36 (3.6mm lens, HFOV 85-90 Degree) |
|
Sensor |
JX-F35 |
|
SensorSize |
1/2.7inch |
|
Pixel Size |
3.0µm x 3.0µm |
|
Max. Resolution |
3840(H)X1080(V) |
|
Compression Format |
MJPEG/ YUY2 (YUYV) |
|
Resolution & Frame Rate |
MJPEG：3840X1080@60fps/2560X720@60fps /1600X600@60fps 1280X480@60fps /640X240@60fps |
|
Sensitivity |
4.5V/lux-sec@550nm |
|
Minillumination |
0. 3lux |
|
Shutter Type |
Electronic rolling shutter / Frame exposure |
|
Connecting Port Type |
USB2.0 High Speed |
|
Free Drive Protocol |
USB Video Class(UVC) |
|
Support OTG Protocol |
USB2.0 OTG |
|
AEC |
Support |
|
AWB |
Support |
|
Adjustable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White Balance, Backlight Contrast, Exposure |
|
Lens Parameter |
M12Lens HOV 85degree(Many other lens optional) |
|
Power Supply |
USB BUS POWER Type-C |
|
Operating Voltage |
DC5V |
|
Working Current |
210mA~240mA |
|
Working Temperature |
-10～70℃ |
|
Storage Temperature |
-20～85℃ |
|
Board Size /Weight |
80X16.5mm/ About 45g |
|
Cable |
Standard 1.2M |
|
Operating System Request |
Win XP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC(above linux-2.6.2) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
ELP-USB3D1080P02-H120 (120 No distortion Lens, HFOV about 120degree)
ELP Dual Lens USB Camera 4MP 3840*1080P Double Lens
High resolution 3840*1080, high sharpness, excellent image.* Dual lens two images synchronized.
Well used for 3D Video device
1080P Mjpeg 60FPS
High speed, High Frame Rate* 3840*1080 Mjpeg 60FPS
Ideal for fast speed recording & Live streaming
120 degree Undistorted No distortion lens(Many other lens optional)
FOR PC:
* Support windows,linux,mac,Android,raspberry Pi
* Very easy to use,UVC compliant,free driver,just plug in and go.
FOR RASPBERRY PI
* It can work with already preinstalled camera software instead of builtin camera.
* Support Android development board,Raspberry Pi development board,Jetson Nano,etc.

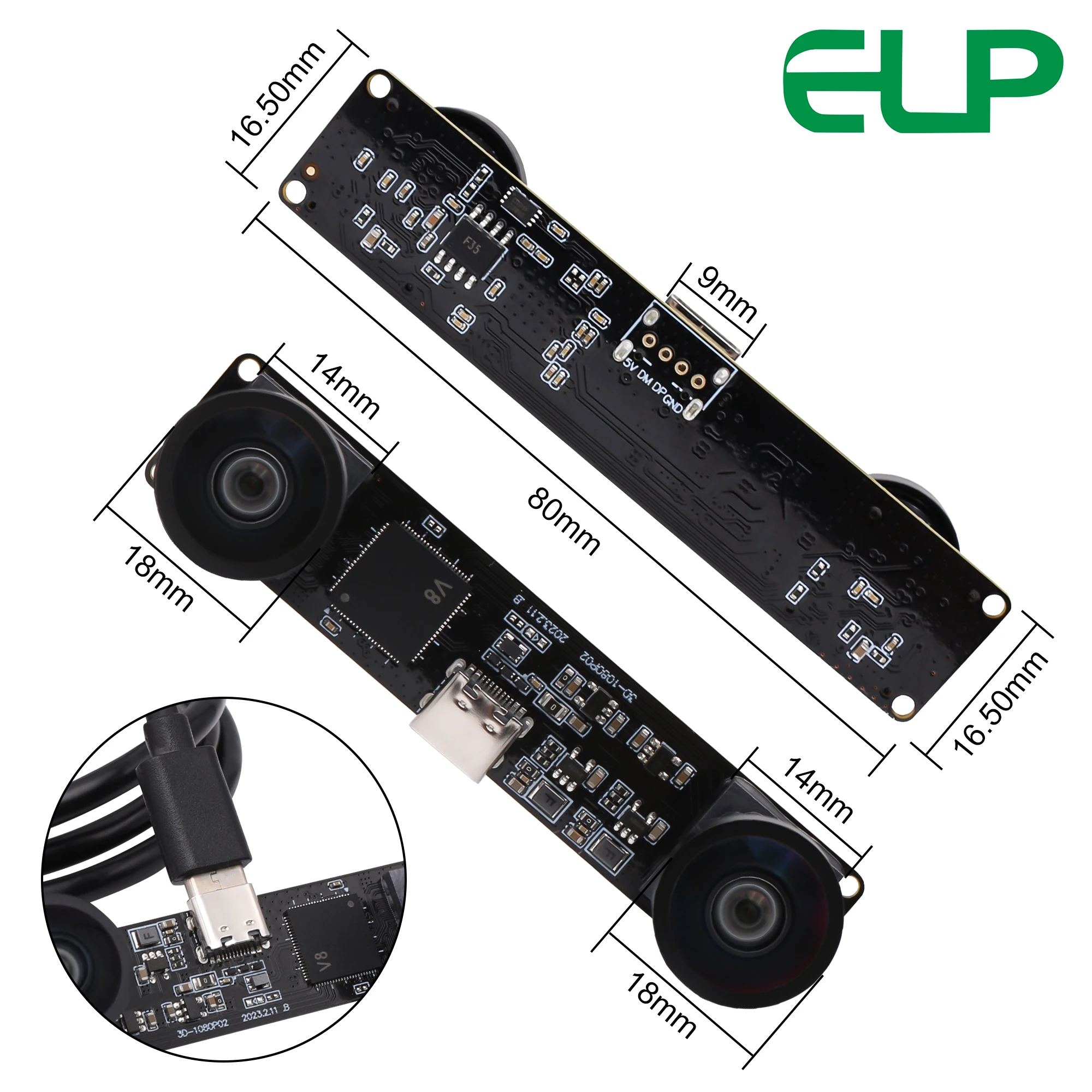

Small size 80mmx16.5mm camera board for embedded application
*Application: Robot vision, Virtual reality, Augmented Reality, biometric Retina analyze, 3D measurement, Intelligent transportation system, People Counting & Tracking, Astrophotography etc.
